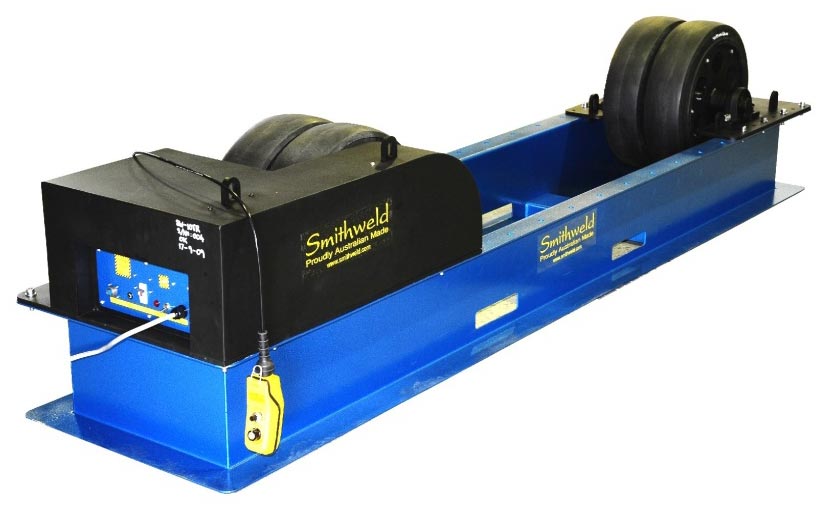

SW-15TR-4 15,000 Kg Pipe Welding Rotator

Specification
• Capacity: 15,000 Kg
• Voltage: 240 VAC 1 ph
• Speed Range: 100 – 600 mm/min
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
• Main Frame Length 180 cm – 200 cm
• Width 86 cm
• Height 63 cm
• Weight 550 Kg main drive
• Weight: 290 Kg idler

Description

The SW-15TR-4 Pipe welding rotator has a 300 – 2000 mm diameter & a SWL 15
metric tonne pipe turning capacity, when combined with at least two Idler units
SW-4TRI-2. It comes with all the standard Smithweld rotator features.
