Description
This 5 Kg ELV or Extra Low Voltage portable oven is specifically designed for use in
confined spaces. It is mostly used in Refinery tank construction and Defence
applications, specifically Frigate and Submarine hull modules.

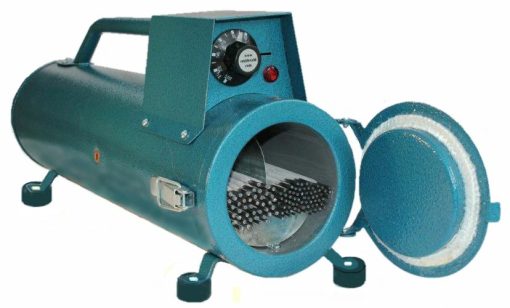

S-5ELV-32V The extra low voltage 5Kg Portable Electrode oven
Specification
Capacity: 5 Kg (11 lbs)

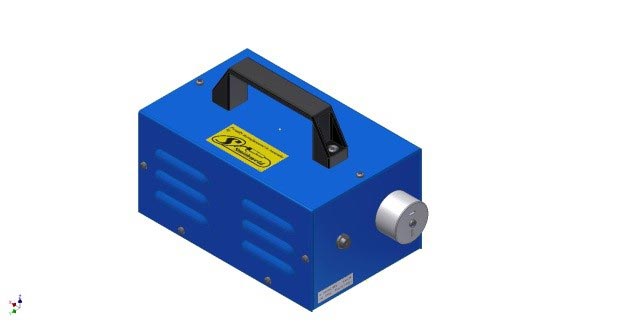

Power Supply input: 220-240 VAC 50 Hz.
Power Supply output: 32 VAC
Electrode Wattage: 350 W.
Temp. Range: 30-180°C.
Power Supply protected by thermal (auto reset) fuse
Dimensions
Depth: 475 mm. (18-3/4”)
Width: 100 mm. (4”)
Height : 85 mm. (3- 3/8”)
Net Weight: 5 Kg. (11 lbs)
Shipping Box : 560 mmD x 175 mmW x 260 mmH + Power supply & 20m cable
